10 th std science unit - 1 laws of motion book back solutions
text book evaluation
I. choose the correct answer:
1. Inertia of a body depends on
a. weight of the object b. acceleration due to gravity of the planet
c. mass of the object d. Both a & b
Ans : (c) mass of the object
2. Impulse is equal to
a. rate of change of momentum b. rate of force and time
c. change of momentum d. rate of change of mass
Ans : (c) change of momentum
3. Newton’s III law is applicable
a. for a body is at rest b. for a body in motion
c. both a and b d. only for bodies with equal masses
Ans : (c) both (a) & (b)
4. Plotting a graph for momentum on the X-axis and time on Y-axis. slope of momentum-time graph
gives
a. Impulsive force b. Acceleration c. 1/Force d. Rate of force
Ans : (c) 1/F)
5. In which of the following sport the turning of effect of force used
a. swimming b. tennis c. cycling d. hockey
Ans : (c) cycling
6. The unit of ‘g’ is m s-2. It can be also expressed as
a. cm s–1 b. N kg–1 c. N m2 kg–1 d. cm2 s–2
Ans : (b) N Kg–1
7. One kilogram force equals to
a. 9.8 dyne b. 9.8 × 104 N c. 98 × 104 dyne d. 980 dyne
Ans : (c) 98 × 104 dyne
8. The mass of a body is measured on planet Earth as M kg. When it is taken to a planet of radius half
that of the Earth then its value will be __________ kg
a. 4 M b. 2M c. M/4 d. M
Ans : (c) M/4
9. If the Earth shrinks to 50% of its real radius its mass remaining the same, the weight of a body on
the Earth will
a. decrease by 50% b. increase by 50% c. decrease by 25% d. increase by 300%
Ans : (c) decrease by 25%
10. To project the rockets whice of the following principle(s) is /are required?
a. Newton’s third law of motion b. Newton’s law of gravitation
c. law of conservation of linear momentum d. both a and c
Ans : (d) both (a) and (c)
II. fill in the blanks:
1. To produce a displacement __________ is required. Ans : Force
2. Passengers lean forward when sudden brake is applied in a moving vehicle. This can be explained by
__________ Ans : Inertia of motion
3. By convention, the clockwise moments are taken as __________ and the anticlockwise moments are taken
as __________. Ans : Negative, Positive
4. __________ is used to change the speed of car. Ans : Gears
5. A man of mass 100 kg has a weight of __________ at the surface of the Earth. Ans : 980 N
III. True or False (correct the statement if it is false):
1. The linear momentum of a system of particles is always conserved.
Ans : False. The linear momentum of a system of particles is always conserved only if no external force is
applied.
2. Apparent weight of a person is always equal to his actual weight.
Ans : False. Apparent weight and actual weight is not equal during upward or downward motion.
3. Weight of a body is greater at the equator and less at the polar region.
Ans : False. Weight of a body is lesser at the equator and more at the polar region as g α 1 __
R2 .
4. Turning a nut with a spanner having a short handle is so easy than one with a long handle.
Ans : False. Moment of force in longer handle is easy than one with a short handle.
5. There is no gravity in the orbiting space station around the Earth. So the astronauts feel weightlessness.
Ans : False. Apparent weight is zero. They are in the state of weightlessness.
IV. Match the following:
Column I Column II
1. Newton's I law (a) propulsion of a rocket
2. Newton's II law (b) stable equilibrium of a body
3. Newton's III law (c) law of force
4. Law of conservation of linear momentum (d) flying nature of bird
Ans :
Column I Column II
1 Newton's I law b) stable equilibrium of a body
2 Newton's II law c) law of force
3 Newton's III law d) flying nature of bird
4 Law of conservation of linear momentum a) propulsion of a rocket
V. Assertion and Reason:
Mark the correct choice as
a) If both the assertion and the reason are true and the reason is the correct explanation of
assertion.
b) If both the assertion and the reason are true, but the reason is not the correct explanation of the
assertion.
c) Assertion is true, but the reason is false.
d) Assertion is false, but the reason is true.
1. Assertion: The sum of the clockwise moments is equal to the sum of the anticlockwise momen.
Reason: The principle of conservation of momentum is valid if the external force on the system is zero.
Ans : (b) both the assertion and the reason are true, but the
reason is not the correct explanation of the assertion
2. Assertion: The value of 'g' decreases as height and depth increases from the surface of the Earth.
Reason: 'g' depends on the mass of the object and the Earth.
Ans : (c) Assertion is true, but the reason is false
VI. Answer briefly:
1. Define inertia. Give its classification.
The inherent property of a body to resist any change in its state of rest (or) the state of uniform motion,
unless it is influenced upon by an external unbalanced force is known as Inertia.
Types of Inertia :
* Inertia of rest.
* Inertia of motion.
* Inertia of direction.
2. Classify the types of force based on their application.
The 2 types of forces are,
* Like parallel forces.
* Unlike parallel forces.
3. If a 5 N and a 15 N forces are acting opposite to one another. Find the resultant force and the
direction of action of the resultant force.
Resultant Force = F2 – F1
= 15N – 5N
= 10N.
4. Differentiate mass and weight.
5. Define moment of a couple.
The line of action of the two forces does not coincide. It does not produce any translatory motion since the
resultant is zero. But a couple results in causes the rotation of the body. Rotating effect of a couple is known
as moment of a couple.
Moment of couple = F × S
M = F × S. (S I Unit is Nm)
6. State the principle of moments.
When a number of like or unlike parallel forces act on a rigid body and the body is in equilibrium, then the
algeberic sum of the moments in the clockwise direction is equal to the algebraic sum of the moments in the
anticlockwise direction.
7. State Newton’s second law.
The force acting on a body is directly proportional to the rate of change of linear momentum of the body and
the change in momentum takes place in the direction of the force.
8. Why a spanner with a long handle is preferred to tighten screws in heavy vehicles?
The turning effect of a force is called moment of force.
Moment of Force = Force × Perpendicular distance
= F × d
For the spanner with a long handle, 'd' is large. Therefore the moment of force is also large and hence
it is easier to rotate the object (nut).
9. While catching a cricket ball the fielder lowers his hands backwards. Why?
In cricket, a fielder pulls back his hands while catching the ball. He experiences a smaller force for a longer
interval of time to catch the ball, resulting in a lesser impulse on his hands.
10. How does an astronaut float in a space shuttle?
On the astronaut there is no external force on him due to planet or space ship. By the first law of motion the
acceleration on him is zero. So he floats.
VII. Solve the given problems:

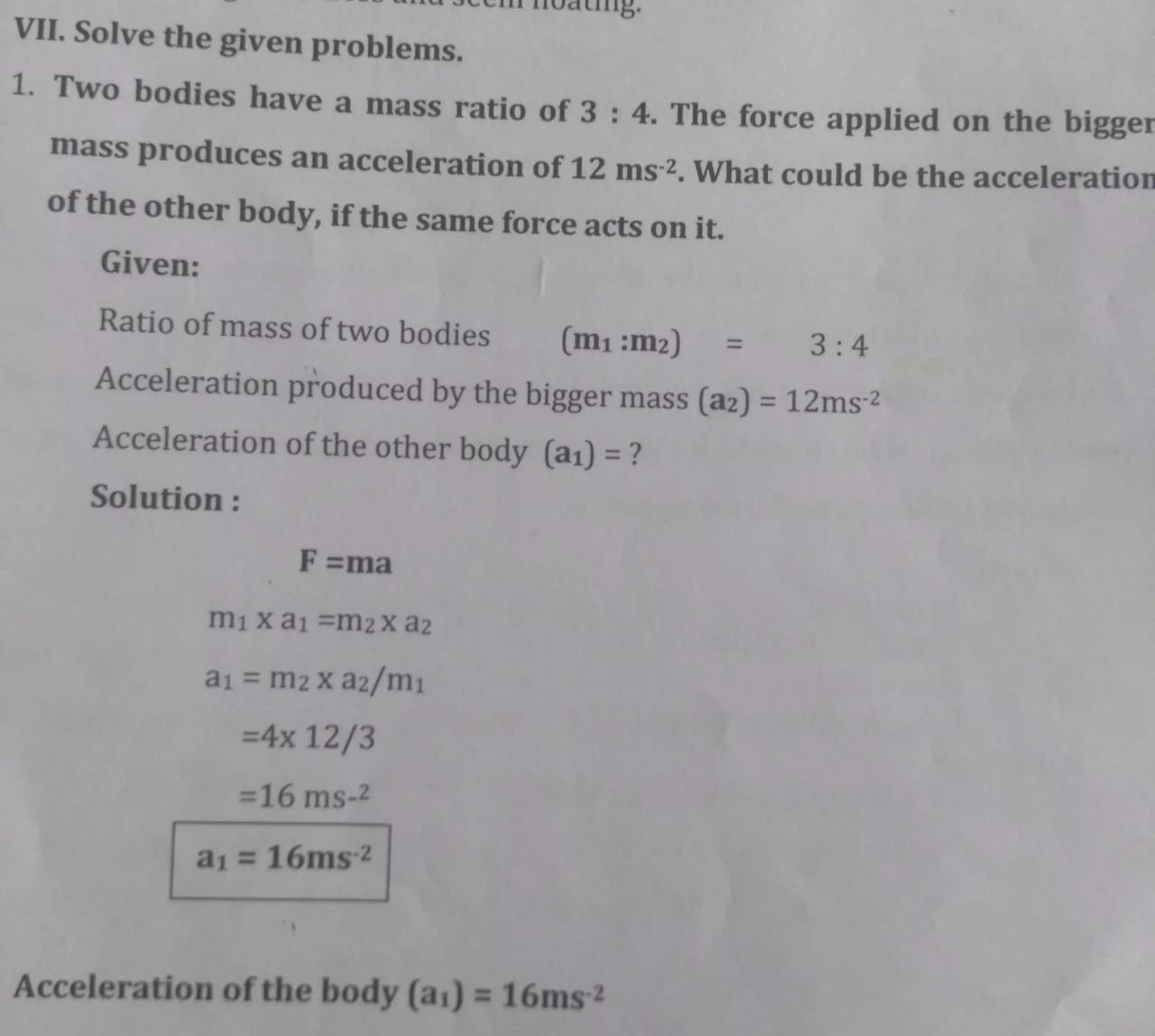

1. Two bodies have a mass ratio of 3:4 The force applied on the bigger mass produces an acceleration
of 12 ms-2.What could be the acceleration of the other body, if the same force acts on it.
ANS :
2. A ball of mass 1 kg moving with a speed of 10 ms-1 rebounds after a perfect elastic collision with the
floor. Calculate the change in linear momentum of the ball.
ANS :
VIII. Answer in detail:
1. What are the types of inertia? Give an example for each type.
There are 3 types of Inertia. They are;
* Inertia at rest : The resistance of a body to change its state of rest is called inertia of rest.
Example : When you vigorously shake the branches of a tree, some of the leaves and
fruits are detached and they fall down (Inertia of rest).
* Inertia of motion : The resistance of a body to change its state of motion is called inertia of
motion.
Example : An athlete runs some distance before jumping because this will help him jump
longer and higher.
* Inertia of direction : The resistance of a body to change its direction of motion is called inertia of
direction.
Example : When a bus turn towards right, the passangers are thrown towards left.
2. State Newton’s laws of motion?
Newton's First Law : This law states that everybody continues to be in its state of rest (or) the state of uniform motion along a straight line unless it is acted upon by some external force.
Newton's Second Law : According to this law, the force acting on a body is directly proportional to the rate
of change of linear momentum of the body and the change in momentum takes
place in the direction of the force.
Newton's Third Law : Newton's third law states that for every action, there is an equal and opposite
reaction. They always act on two different bodies.
3. Deduce the equation of a force using Newton’s second law of motion.
This law helps us to measure the amount of force. So it is also called as "law of force". Let 'm' be the mass
of a moving body, moving along a straight line with an initial speed 'u' after a time interval of 't', the velocity
of the body changes to 'v' due to the impact of an unbalanced external force 'F'.
Initial momentum of the body Pi = mu
Final momentum of the body Pf = mv
Change in momentum P = Pf – Pi
= mv – mu
By Newton's second law of motion,
Force, F ∝ rate of change of momentum.
F ∝ change in momentum / time.
F ∝ mv – mu / t
F = K m (v-u) / t
Here K is the proportionality constant. K=1 in all systems of units. Hence,
F = m (v-u) / t
since acceleration = change in velocity / time
a = (v-u) / t
Hence we have
F = m × a
Force = mass × acceleration
No external force is required to maintain the motion of a body moving with uniform velocity. When the
net force acting on a body is not equal to zero, then definitely the velocity of the body will change.
4. State and prove the law of conservation of linear momentum.
Answer:
Proof:
Let two bodies A and B having masses m1 and m2 move with initial velocity u1 and u2 in a straight line. Let the velocity of the first body be higher than that of the second body, i.e,, u1 > u2. During an interval of time t second, they tend to have a collision. After the impact, both of them move along the same straight line with a velocity v1 and v2 respectively.
Force on body B due to A,
FB = m2(v2 – u2)/t
Force on body A due to B,
FA = m1(v1 – u1)/t
By Newton’s III law of motion,
Action force = Reaction force
FA = -FB
m1(v1 – u1)/t = -m2 (v2 – u2)/t
m1 v1 + m2 v2 = m1 u1 + m2 u2
The above equation confirms in the absence of an external force, the algebraic sum of the momentum after collision is numerically equal to the algebraic sum of the momentum before collision.
Hence the law of conservation of linear momentum is proved.
On combining the above two expressions
F ∝
5. Describe rocket propulsion.
* Propulsion of rockets is based on the law of conservation of linear momentum as well as Newton's III
law of motion.
* Rockets are filled with a fuel in the propellant tank.
* When the rocket is fired, this fuel is burnt and a hot gas is ejected with a high speed from the nozzle of the rocket, producing a huge momentum.
* To balance this momentum, an equal and opposite reaction force is produced in the combustion chamber,
which makes the rocket project forward.
* While in motion, the mass of the rocket gradually decreases, until the fuel is completely burnt out.
* Since, there is no net external force acting on it, the linear momentum of the system is conserved.
* The mass of the rocket decreases with altitude, which results in the gradual increase in velocity of the
rocket.
* At one stage, it reaches a velocity, which is sufficient to just escape from the gravitational pull of the
Earth. This velocity is called escape velocity.
6. State the universal law of gravitation and derive its mathematical expression.
This law states that every particle of matter in this universe attracts every other particle with a force. This force is directly proportional to the product of their masses and inversely proportional to the square of the distance between the centers of these masses. The direction of the force acts along the line joining the masses.
Force between the masses is always attractive and it does not depend on the medium where they are placed.
Let, m1 and m2 be the masses of two bodies A and B placed r metre apart in space
Force F ∝ m1 × m2
F ∝ 1/r²
7. Give the applications of universal law gravitation.
* Dimensions of the heavenly bodies can be measured using the gravitation law. Mass of the Earth, radius of the Earth, acceleration due to gravity, etc. can be calculated with a higher accuracy.
* It helps in discovering new stars and planets.
* One of the irregularities in the motion of stars is called 'Wobble' lead to the disturbance in the motion of a planet nearby. In this condition the mass of the star can be calculated using the law of gravitation.
* Helps to explain germination of roots is due to the property of geotropism which is the property of a root responding to the gravity.
* Helps to predict the path of the astronomical bodies.
IX. HOT questions:
